Marine Engines
UM6BG1
Generator Engines

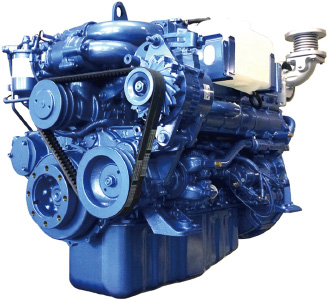

*Image shown may not reflect actual engine configuration.
| Engine Model | UM6BG1TCE-96 |
|---|---|
| Rated output kW(PS)/min-1t | 96(130) / 1800 |
| Idling speed min-1t | 1175～1225 |
| Displacement Lit. (cid) | 6.49 (396) |
| Bore x Stroke mm (in) | 105 × 125 (4.13 × 4.92) |
| Configuration | 6-cylinder, vertical in-line, 4-cycle deisel engine |
| Aspiration | Turbo chargered / Intercooler |
| Dimentions L x W x H mm (in) | 1327 x 823 x 956 |
| Engine Weight (dry) kg(lb) | 650 |
| Engine Model | UM6BG1TCE-115 |
|---|---|
| Rated output kW(PS)/min-1t | 115(157) / 1800 |
| Idling speed min-1t | 1175～1225 |
| Displacement Lit. (cid) | 6.49 (396) |
| Bore x Stroke mm (in) | 105 × 125 (4.13 × 4.92) |
| Configuration | 6-cylinder, vertical in-line, 4-cycle deisel engine |
| Aspiration | Turbo chargered / Intercooler |
| Dimentions L x W x H mm (in) | 1327 x 823 x 956 |
| Engine Weight (dry) kg(lb) | 650 |
