Marine Engines
UM4BG1
Generator Engines

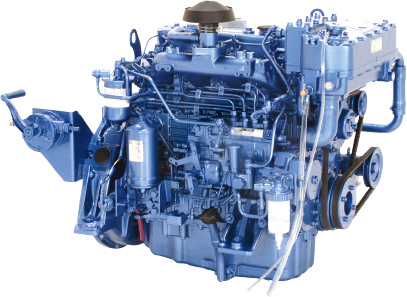

*Image shown may not reflect actual engine configuration.
| Engine Model | UM4BG1E |
|---|---|
| Rated output kW(PS)/min-1 | 41 (56) / 1800 |
| Idling speed min-1 | 1200 |
| Displacement Lit. (cid) | 4.32 (264) |
| Bore x Stroke mm (in) | 105 × 125 (4.13 × 4.92) |
| Configuration | 4-cylinder, vertical in-line, 4-cycle deisel engine |
| Aspiration | Natural aspiration |
| Dimentions L x W x H mm (in) | 1034 x 835 x 838 |
| Engine Weight (dry) kg(lb) | 420 |
| Engine Model | UM4BG1TE |
|---|---|
| Rated output kW(PS)/min-1 | 61 (83) / 1800 |
| Idling speed min-1 | 1175～1225 |
| Displacement Lit. (cid) | 4.32 (264) |
| Bore x Stroke mm (in) | 105 × 125 (4.13 × 4.92) |
| Configuration | 4-cylinder, vertical in-line, 4-cycle deisel engine |
| Aspiration | Turbo chargered |
| Dimentions L x W x H mm (in) | 1034 x 758 x 904 |
| Engine Weight (dry) kg(lb) | 420 |
