Marine Engines
Common rail UM6WG1

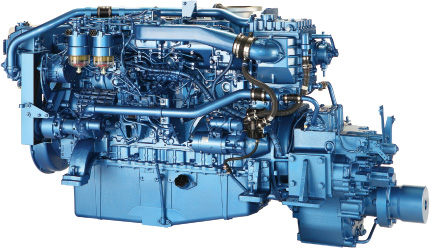

*Image shown may not reflect actual engine configuration.
| Model | UM6WG1WM-AB3 |
|---|---|
| Maximum output（kW(PS)/min-1） | 485(659)/2100 |
| Rated output（kW(PS)/min-1） | 441(600)/2035 |
| Displacement（L） | 15.6 |
| Cylinder count - inside diameter x stroke (mm) | 6 - 147×154 |
| Dimensions (L×W×H mm) | 2425×1095×1359 |
| Dry weight (kg) | 1971 |
| Intake system | Turbo with intercooler |
| Combustion system | Direct injection type |
| Compatible exhaust gas regulations | Compliant with Tier 2 regulations |
| Loadable tonnage hierarchy classification | C (6.0 - less than 10 tons) |
※This product is designed for use in Japan. Specifications may vary depending on the region in which it is used.
