Marine Engines

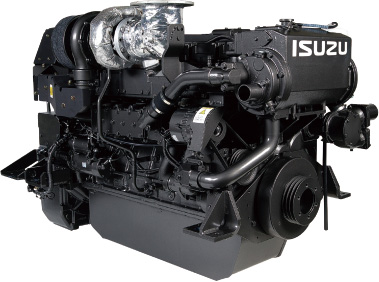

6M137
*Image shown may not reflect actual engine configuration.
| Model | 6M137A-2 |
|---|---|
| Maximum output（kW(PS)/min-1） | 555(755)/2100 |
| Rated output（kW(PS)/min-1） | 505(687)/2035 |
| Displacement（L） | 14.7 |
| Cylinder count - inside diameter x stroke (mm) | 6 - 137.9×165 |
| Dimensions (L×W×H mm) | 2298×1060×1283 |
| Dry weight (kg) | 2320 |
| Intake system | Turbo with intercooler |
| Combustion system | Direct injection type |
| Compatible exhaust gas regulations | Compliant with Tier 2 regulations |
| Loadable tonnage hierarchy classification | C (6.0 - less than 10 tons) |
※This product is designed for use in Japan. Specifications may vary depending on the region in which it is used.
| Model | 6M137AP-2 |
|---|---|
| Maximum output（kW(PS)/min-1） | 594(808)/2200 |
| Rated output（kW(PS)/min-1） | 540(734)/2132 |
| Displacement（L） | 14.7 |
| Cylinder count - inside diameter x stroke (mm) | 6 - 137.9×165 |
| Dimensions (L×W×H mm) | 2298×1060×1283 |
| Dry weight (kg) | 2320 |
| Intake system | Turbo with intercooler |
| Combustion system | Direct injection type |
| Compatible exhaust gas regulations | Compliant with Tier 2 regulations |
| Loadable tonnage hierarchy classification | C (6.0 - less than 10 tons) |
※This product is designed for use in Japan. Specifications may vary depending on the region in which it is used.
