Marine Engines
UM6BG1MUG

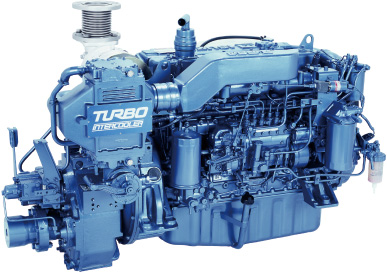

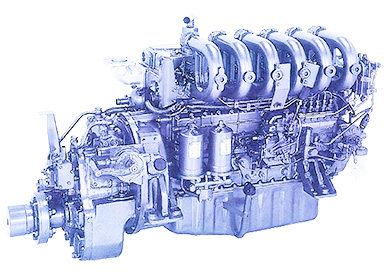

*Image shown may not reflect actual engine configuration.
| Model | UM6BG1MUG |
|---|---|
| Maximum output（kW(PS)/min-1） | 110(149)/2800 |
| Rated output（kW(PS)/min-1） | 100(136)/2715 |
| Displacement（L） | 6.06 |
| Cylinder count - inside diameter x stroke（mm） | 6 - 101.5×125 |
| Dimensions (L×W×H mm) | 1514×812×964 |
| Dry weight (kg) | 735 |
| Intake system | Natural aspiration |
| Combustion system | Direct injection type |
| Compatible exhaust gas regulations | Not subject to regulations |
| Loadable tonnage hierarchy classification | A (- less than 4.0 tons) |
※This product is designed for use in Japan. Specifications may vary depending on the region in which it is used.
