Marine Engines
6M170

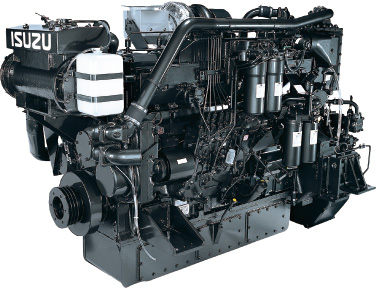

*Image shown may not reflect actual engine configuration.
| Model | 6M170AP-5 |
|---|---|
| Maximum output（kW(PS)/min-1） | 702(954)/2000 |
| Rated output（kW(PS)/min-1） | 639(869)/1938 |
| Displacement（L） | 23.1 |
| Cylinder count - inside diameter x stroke (mm) | 6 - 170×170 |
| Dimensions (L×W×H mm) | 2665×1170×1547 |
| Dry weight (kg) | 4005 |
| Intake system | Turbo with intercooler |
| Combustion system | Direct injection type |
| Compatible exhaust gas regulations | Compliant with Tier 2 regulations |
| Loadable tonnage hierarchy classification | D (10 - less than 15 tons) |
※This product is designed for use in Japan. Specifications may vary depending on the region in which it is used.
