Marine Engines
Common rail UM6HK1

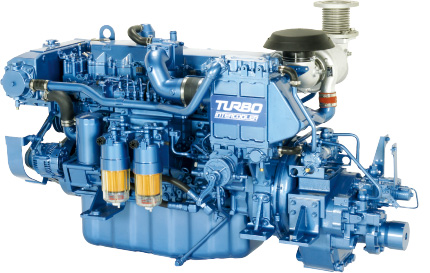

*Image shown may not reflect actual engine configuration.
| Model | UM6HK1WM-AB3 |
|---|---|
| Maximum output（kW(PS)/min-1） | 253(344)/2500 |
| Rated output（kW(PS)/min-1） | 230(312)/2420 |
| Displacement（L） | 7.79 |
| Cylinder count - inside diameter x stroke (mm) | 6 - 115×125 |
| Dimensions (L×W×H mm) | 1771×989×1103 |
| Dry weight (kg) | 970 |
| Intake system | Turbo with intercooler |
| Combustion system | Direct injection type |
| Compatible exhaust gas regulations | Compliant with Tier 2 regulations |
| Loadable tonnage hierarchy classification | A (- less than 4.0 tons) |
※This product is designed for use in Japan. Specifications may vary depending on the region in which it is used.
